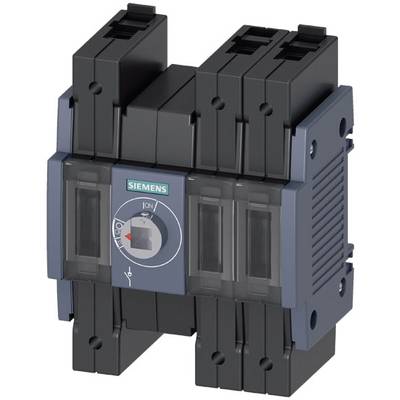

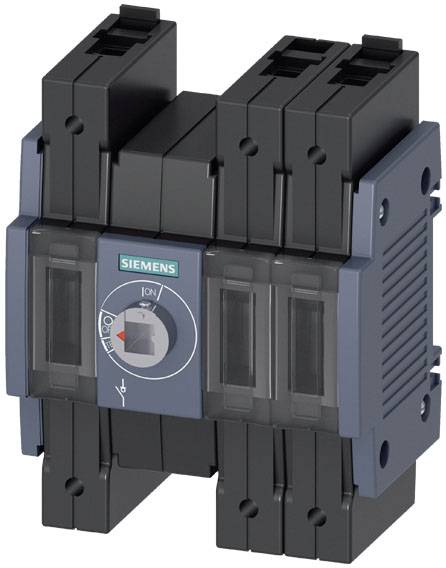

80 A 4 menjalo Siemens 3KD28302ME200
Ean:
Koda proizvajalca:
Št. izdelka:
Število pinov
3
Nazivni tok - zaokrožen
80 A
Kontakt
4 menjalo
Obratovalna napetost
1000 V/AC

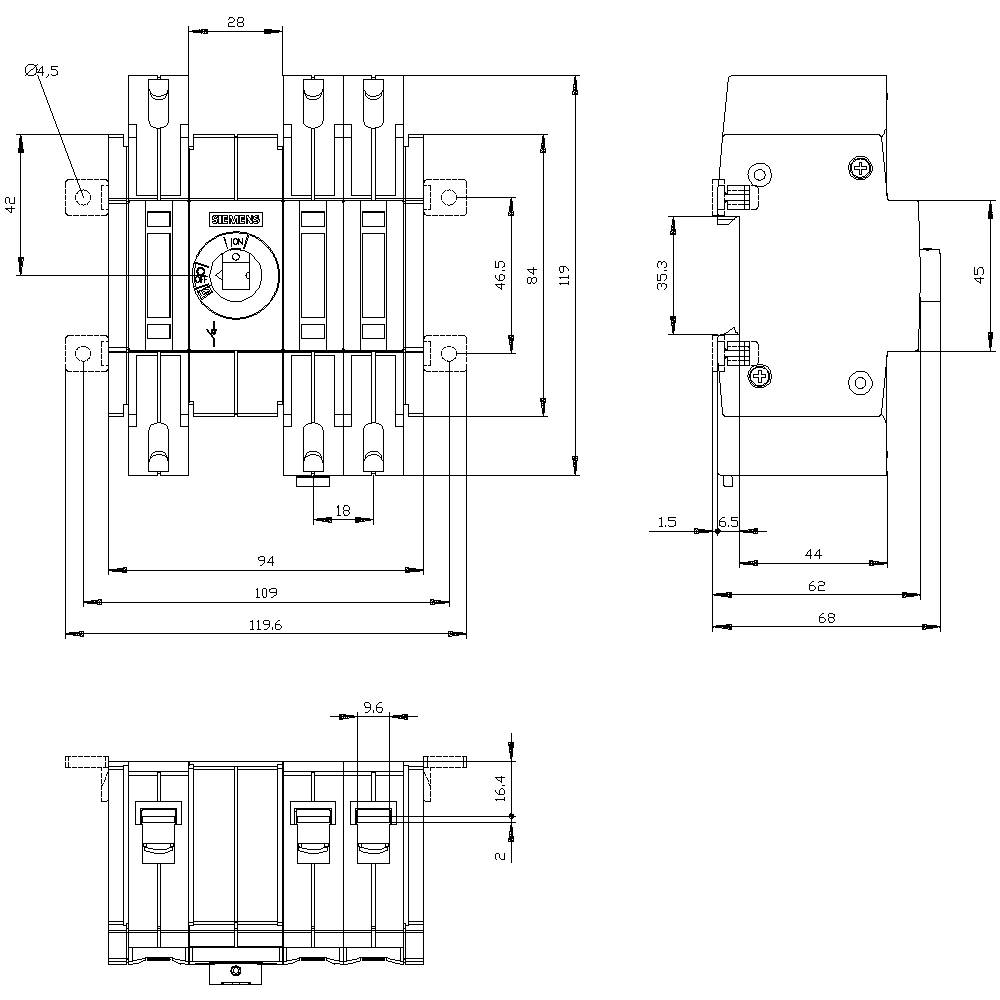

Mere
(Š x V x G) 94 x 119 x 68 mm
Število
Skupaj (95,99 € / Kos)
€
Tehnične specifikacije
- Zasnova zaslona / za vrtljivi upravljalni mehanizem sklopke zaslona položaja stikala: VKLOP-IZKLOP
- Zasnova električne povezave za glavno vezje: omarica
- Velikost ločilnega stikala: 1
- Vrsta pritrditve: pritrditev z vijakom in DIN letev 35 mm
- Pritrditev na tla: da
- Izolacijska napetost: 1000 V
- Vrsta zaščite: IP20
- Temperatura okolice med delovanjem: -25 ° C - +70 ° C
- Največja izguba moči: 6,3 W
- Mehanska življenjska doba (preklopni cikli) / tipično: 15000
- Impulzna vzdržljiva napetost: 8 kV
- Kontakt
4 menjalo
- Obratovalna napetost
1000 V/AC
- Število pinov
3
- Mere
(Š x V x G) 94 x 119 x 68 mm
- Nazivni tok
80 A
- Nazivni tok - zaokrožen
80 A
- Izvedba
Pogon na sprednja kolesa
- Širina
94 mm
- Višina
119 mm
- Globina
68 mm
0
0
80 A
3
IP20
4
1
FALSE
FALSE
Frame clamp
TRUE
None
TRUE
TRUE
TRUE
45 kW
3 kA
Other
TRUE
FALSE
FALSE
TRUE
TRUE
1000 V
FALSE
FALSE
Built-in device fixed built-in technique
80 A
37 kW
FALSE
80
Other
Dokumenti in prenosi
Navodila za uporabo in varnost
Navodila za uporabo in varnost 2263562 80 A 4 menjalo Siemens 3KD28302ME200
Opis
SWITCH-DISCONNECTOR 80A, FRAME SIZE 1, 3-POLE FRONT OPERATING CENTER BASIC UNIT WITHOUT HANDLE BOX TERMINAL 3KD switch disconnector up to 1600 A as efficient master, emergency stop or maintenance switch. 3KD switch disconnectors up to 1600 A from Siemens offer reliable operator protection and ensure high plant availability in industry, infrastructure and buildings. As main, EMERGENCY OFF or maintenance switches, 3KD switch disconnectors reliably connect and disconnect live electrical equipment and provide a safety isolating function and isolating distance in low-voltage circuits. 1. Reliable protection from electrical accidents. 2. Rugged technology for high system availability. 3. Wide range of applications with variable connection and operating mechanism types. 4. Simple retrofitting of additional functions with an extensive range of accessories. 5. Quick installation on the standard mounting rail with frame sizes up to 200 A. 6. Efficient engineering with extensive CAx data. 7. Simple documentation with the manual configurator. 8. Suitable for wind power and solar plants. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
