Slika je simbolična
1/4
Slika je simbolična
Polprevodniška zaščita 1 kos 3RF2320-1DA22 Siemens bremenski tok: 20 A preklopna napetost (maks.): 230 V/AC
Ean:
Koda proizvajalca:
Št. izdelka:
Vrsta izdelka
polprevodniška zaščita
Število polov
1-polni
Bremenski tok
20 A
Priključek
vijačna sponka
Vrsta
3RF2320-1DA22
Podatkovni list izdelka (PDF)
Število
Skupaj (119,99 € / Kos)
119,99 €
z DDV
Tehnične specifikacije
- Teža: 200 g
- Odvajanje moči: 20 W
- Vrsta izdelka
polprevodniška zaščita
- Vrsta
3RF2320-1DA22
- Število polov
1-polni
- Kontakt
1 zapiralo
- Krmilna napetost (min).
110 V/AC
- Krmilna napetost (maks.)
230 V/AC
- Območje krmilne napetosti
110 - 230 V/AC
- Preklopna napetost (min.)
24 V/AC
- Preklopna napetost (maks.)
230 V/AC
- Bremenski tok
20 A
- Značilnosti
zaščita pred kratkim stikom z b-avtomatiko
- Namestitev
din-letev
- Priključek
vijačna sponka
- Čas odziva
40 ms
IP20
- Min. temperatura
-25 °C
- Maks. temperatura
+60 °C

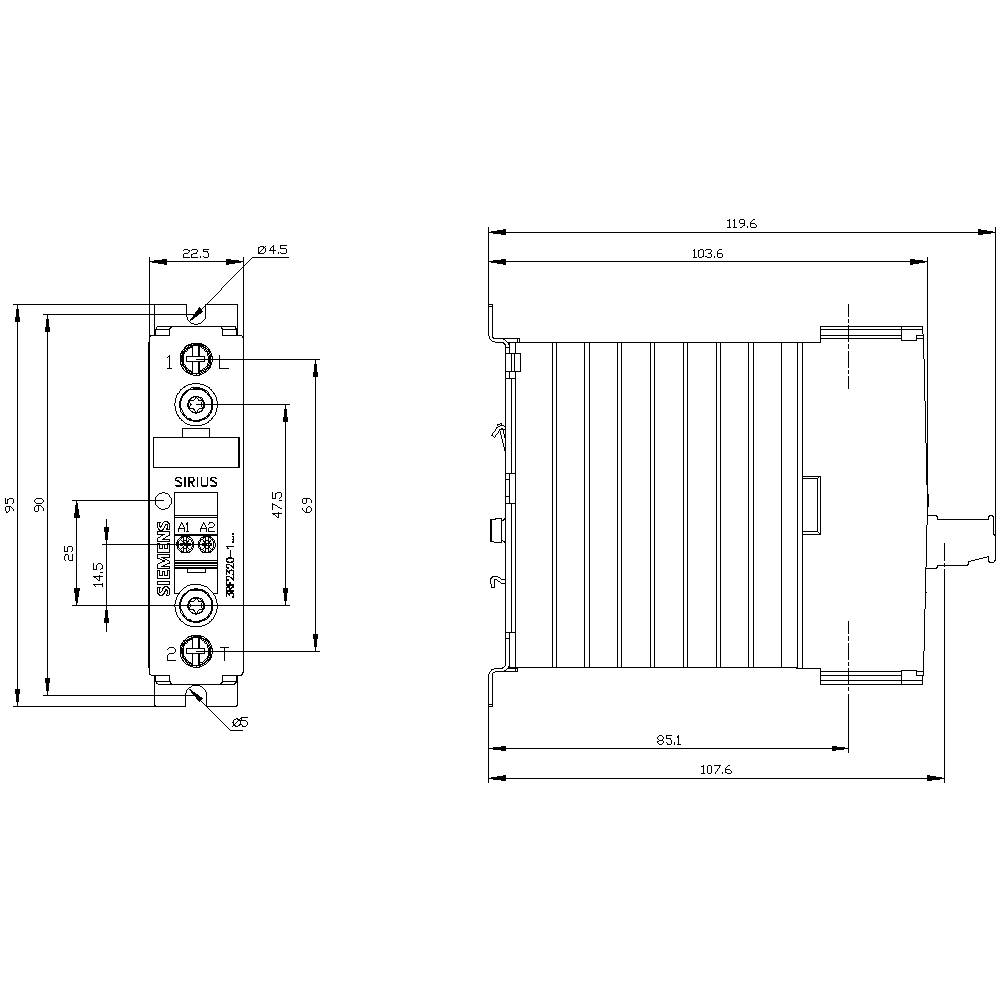

- Širina
22.5 mm
- Višina
100 mm
- Globina
123.5 mm
- Mere
(Š x V x G) 22.5 x 100 x 123.5 mm
- Vsebina
1 kos
- Skladnost z RoHS
Ja
1
TRUE
20 A
AC
20 A
- UKCA
da
Dokumenti in prenosi
Tehnični podatki
Tehnični podatki 1430838 Polprevodniška zaščita 1 kos 3RF2320-1DA22 Siemens bremenski tok: 20 A preklopna napetost (maks.): 230 V/AC
Navodila za uporabo in varnost
Navodila za uporabo in varnost 1430838 Polprevodniška zaščita 1 kos 3RF2320-1DA22 Siemens bremenski tok: 20 A preklopna napetost (maks.): 230 V/AC
Opis
Solid-state contactor 1-phase 3RF2 AC 51 / 20 A / 40 °C 24-230 V / 110-230 V AC short circuit-proof with B miniature circuit breaker solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Obseg dostave
- Polprevodniška zaščita 1 kos 3RF2320-1DA22 Siemens bremenski tok: 20 A preklopna napetost (maks.): 230 V/AC
