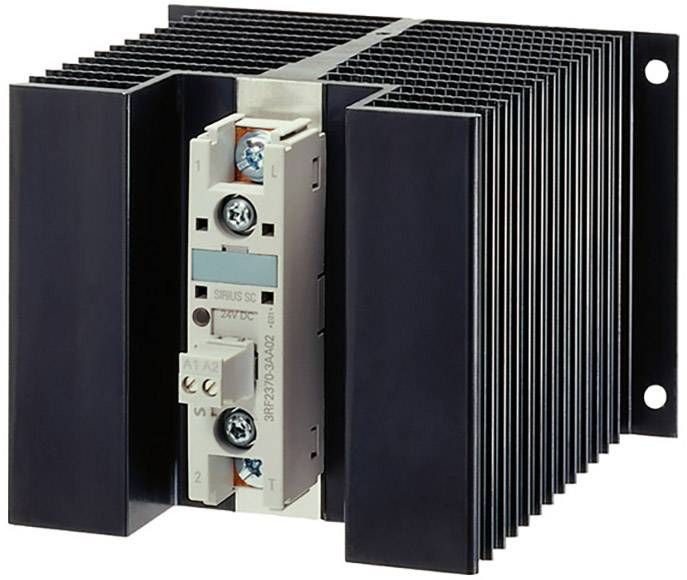

Polprevodniška zaščita 1 kos 3RF2370-3BA26 Siemens bremenski tok: 70 A preklopna napetost (maks.): 600 V/AC
Ean:
Koda proizvajalca:
Št. izdelka:
Vrsta izdelka
polprevodniška zaščita
Število polov
1-polni
Bremenski tok
70 A
Priključek
obročasto ušesce, 5 mm
obročasto ušesce, 3 mm
Vrsta
3RF2370-3BA26
Podatkovni list izdelka (PDF)
Število
Skupaj (219,99 € / Kos)
219,99 €
z DDV
Tehnične specifikacije
- Teža: 1.228 kg
- Odvajanje moči: 83 W
- Vrsta izdelka
polprevodniška zaščita
- Vrsta
3RF2370-3BA26
- Število polov
1-polni
- Vrsta preklopa
trenutno preklapljanje
- Kontakt
1 zapiralo
- Krmilna napetost (min).
110 V/AC
- Krmilna napetost (maks.)
230 V/AC
- Območje krmilne napetosti
110 - 230 V/AC
- Preklopna napetost (min.)
48 V/AC
- Preklopna napetost (maks.)
600 V/AC
- Bremenski tok
70 A
- Namestitev
vijačna pritrditev
- Priključek
obročasto ušesce, 5 mm
obročasto ušesce, 3 mm
- Čas odziva
40 ms
IP00
- Min. temperatura
-25 °C
- Maks. temperatura
+60 °C
- Širina
80 mm
- Višina
100 mm
- Globina
161.5 mm

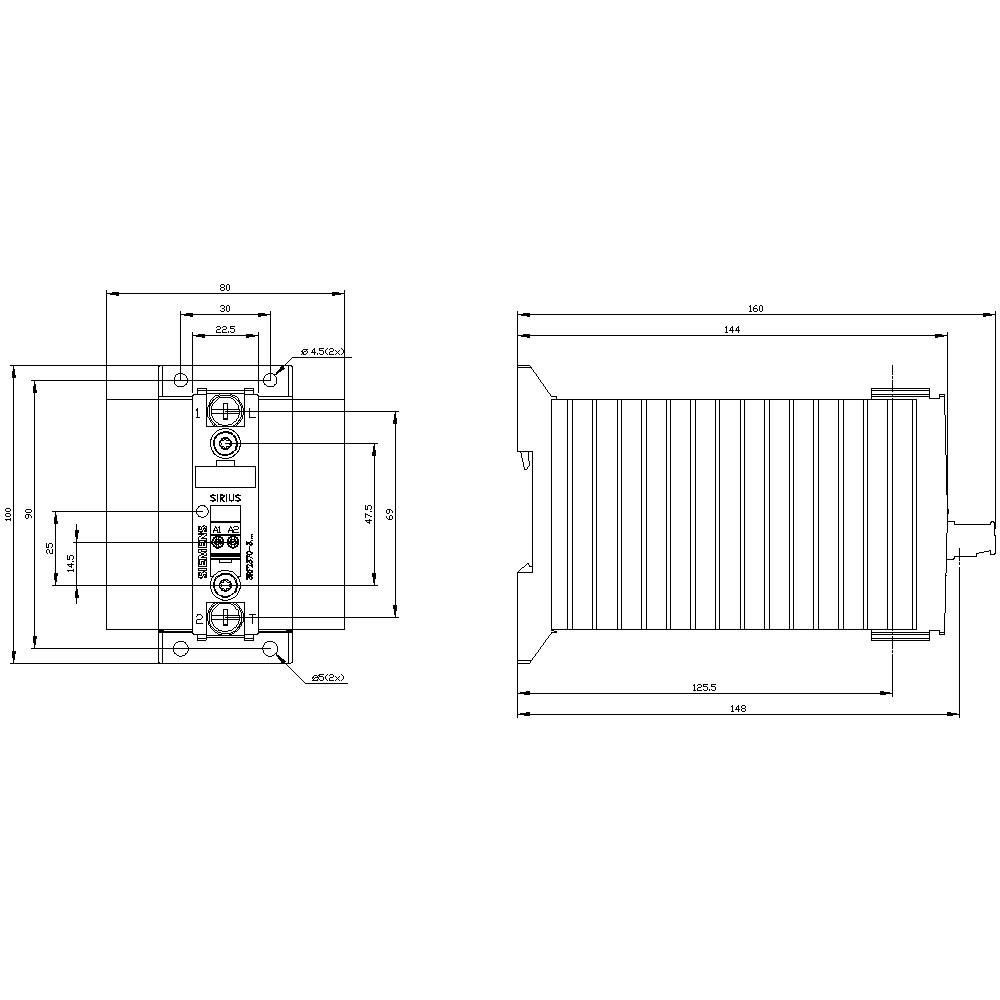

- Mere
(Š x V x G) 80 x 100 x 161.5 mm
- Vsebina
1 kos
- Skladnost z RoHS
Ja
1
TRUE
70 A
AC
70 A
- UKCA
ni pomembno
Dokumenti in prenosi
Tehnični podatki
Tehnični podatki 1430984 Polprevodniška zaščita 1 kos 3RF2370-3BA26 Siemens bremenski tok: 70 A preklopna napetost (maks.): 600 V/AC
Navodila za uporabo in varnost
Navodila za uporabo in varnost 1430984 Polprevodniška zaščita 1 kos 3RF2370-3BA26 Siemens bremenski tok: 70 A preklopna napetost (maks.): 600 V/AC
Opis
Solid-state contactor 1-phase 3RF2 AC 15 / 27.5 A / 40 °C 48-600 V / 110-230 V AC Instantaneous switching Since 21 May 2018, the dimensions and the drill pattern have changed, additional information in the Industry Online Support solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Obseg dostave
- Polprevodniška zaščita 1 kos 3RF2370-3BA26 Siemens bremenski tok: 70 A preklopna napetost (maks.): 600 V/AC
