Tehnične specifikacije

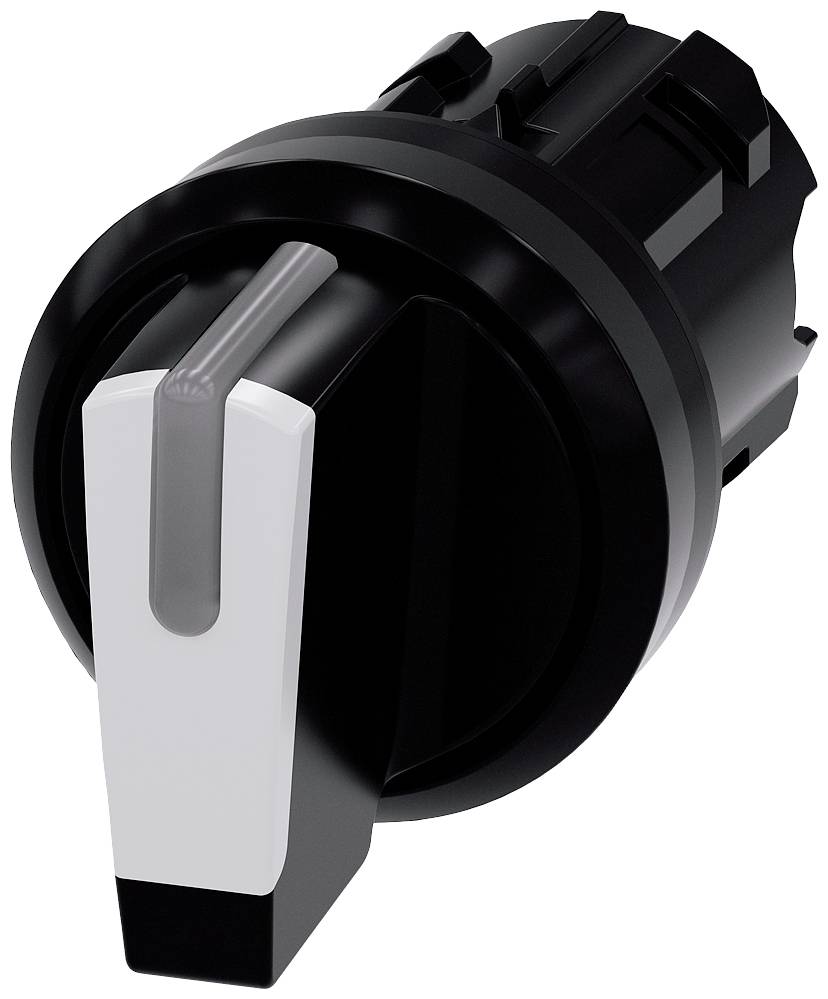

- Vrsta izdelka
preklopno stikalo
- Značilnosti stikal/tipk
prednji obroč iz umetne mase
- Vrsta osvetlitve
simbol puščice
- Barva svetlobe
bela
- Barva
črna
bela
- Motiv za tisk
oznaka s puščico
- Priključek
zunanji kontaktni element
zunanji LED element
- Oblika
Okrogla
- Funkcije
tipkalno
- Mehanska življenjska doba
1000000
- Vgradnja - premer
22 mm
IP66
IP67
IP69K (v vgrajenem stanju)
- Min. temperatura
-25 °C
- Maks. temperatura
+70 °C
- Preklopni kot
2 x 45 °
- Preklopni položaji
1 x (vklop)/izklop/(vklop)
- Širina
32.3 mm
- Višina
32.3 mm
- Vsebina
1 kos
- Mere
(Š x V) 32.3 mm x 32.3 mm
- Skladnost z RoHS
Ja
- Teža
20 g
- Vrsta
3SU1002-2BM60-0AA0
22.3 mm
3
TRUE
TRUE
Black
IP67/IP69K
32.3 mm
28.8 mm
Plastic
TRUE
Rectangular
Wing knob
White
White
FALSE
- UKCA
da
Dokumenti in prenosi
Tehnični podatki
Tehnični podatki 1379573 Siemens 3SU10022BM600AA0 3SU1002-2BM60-0AA0 preklopno stikalo prednji obroč iz umetne mase črna, bela 2 x 45 ° 1 kos
Navodila za uporabo in varnost
Navodila za uporabo in varnost 1379573 Siemens 3SU10022BM600AA0 3SU1002-2BM60-0AA0 preklopno stikalo prednji obroč iz umetne mase črna, bela 2 x 45 ° 1 kos
Informacije
Informacije 1379573 Siemens 3SU10022BM600AA0 3SU1002-2BM60-0AA0 preklopno stikalo prednji obroč iz umetne mase črna, bela 2 x 45 ° 1 kos
Opis
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
