Siemens 3SU1106-6AA60-1AA0 indikator luči ploščato bela 230 V/AC 1 kos

1/4
Podatkovni list izdelka (PDF)
Ean:
Koda proizvajalca:
Št. izdelka:
Dostava čet.,29.10.

3 kos - zaloga Nemčija

Število
Skupaj (24,99 € / Kos)
24,99 €
pravd.Tax.Untaxed z DDV
poštnina ni vključena 6,00 €
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
brez nadaljnjih stroškov pošiljanja
Na voljo samo 3 kos - zaloga Nemčija
Vključena je 14-dnevna politika vračila

Poudarki in podrobnosti

Siemens 3SU1106-6AA60-1AA0 indikator luči ploščato bela 230 V/AC 1 kos

Tehnične specifikacije

  • Material pogona: umetna masa
Vrsta izdelka

indikator luči

Izvedba

umetna masa

Barva

bela

Delovna napetost

230 V/AC

Vgradnja - premer

22 mm

n.rel. (EENRPS00)

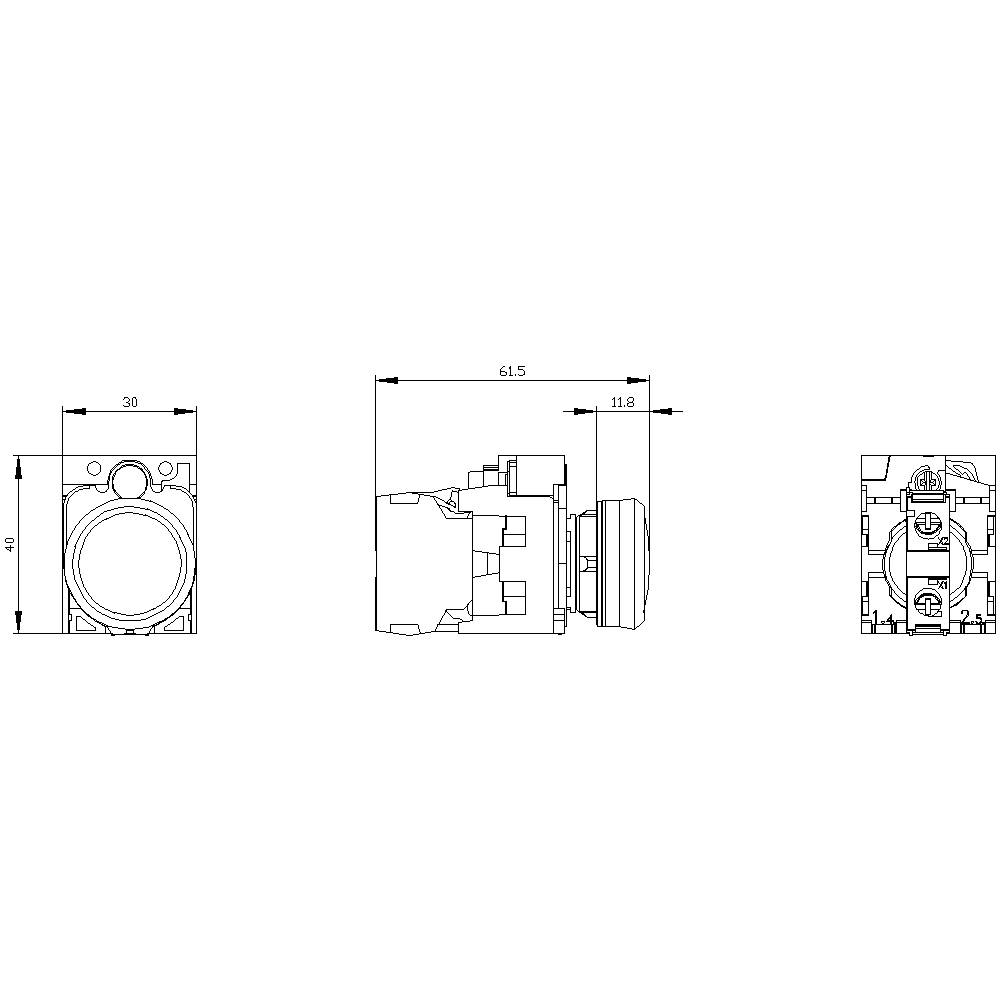

Mere

(Ø x V) 29.45 mm x 40 mm

Priključek

vijačni

Čelna plošča (maks.)

22 mm

Vsebina

1 kos

Širina

30 mm

Višina

40 mm

Premer

29.45 mm

Skladnost z RoHS

Ja

Značilnosti stikal/tipk

ploščato

IP66

IP67

IP69/IP69K

Maks. temperatura

+70 °C

Min. temperatura

-25 °C

Vrsta

3SU1106-6AA60-1AA0

Vključena svetila

da

22.3 mm

AC

1

Other

29.5 mm

11.8 mm

IP67/IP69K

TRUE

Other

FALSE

Other

Other

UKCA

da

Dokumenti in prenosi

Tehnični podatki

Tehnični podatki 1379629 Siemens 3SU1106-6AA60-1AA0 indikator luči ploščato bela 230 V/AC 1 kos

Navodila za uporabo in varnost

Navodila za uporabo in varnost 1379629 Siemens 3SU1106-6AA60-1AA0 indikator luči ploščato bela 230 V/AC 1 kos

Informacije

Informacije 1379629 Siemens 3SU1106-6AA60-1AA0 indikator luči ploščato bela 230 V/AC 1 kos

Opis

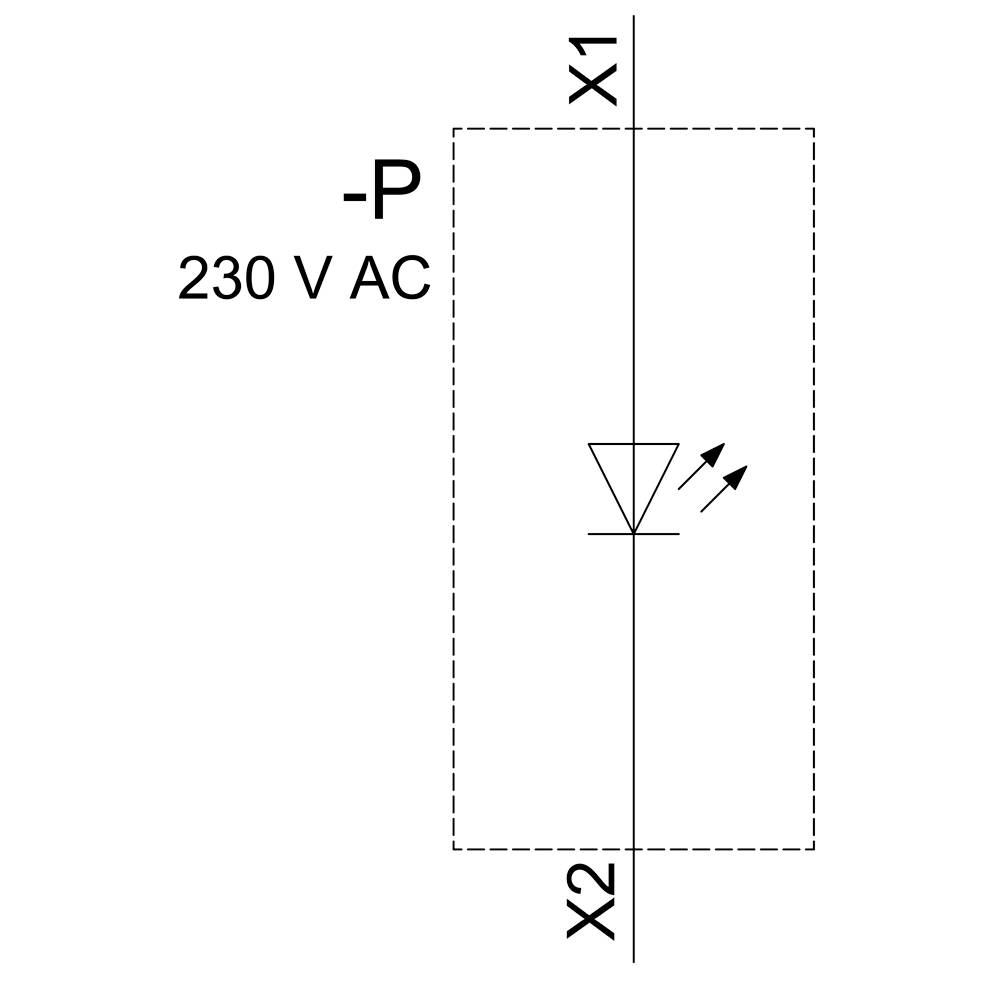

Indicator lights, 22 mm, round, plastic, white, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
