Siemens 3SU1401-1BB20-3AA0 LED modul z LED elementom rdeča 24 V DC/AC 5 kos
Podatkovni list izdelka (PDF)
Ean:
Koda proizvajalca:
Št. izdelka:
Število (velikost pakiranja 5 kos)
Skupaj (61,99 € / Kos)
61,99 €
z DDV
Vključena je 14-dnevna politika vračila
Poudarki in podrobnosti
Siemens 3SU1401-1BB20-3AA0 LED modul z LED elementom rdeča 24 V DC/AC 5 kos
- Kontaktni element
- z vgrajeno LED
Tehnične specifikacije
- Vrsta svetlobnega vira: LED
- Komponenta izdelka / dioda: da
- Komponenta izdelka / vir svetlobe: da
- Odpornost na tresljaje: 10 ... 500 Hz: 5 g
- Tip prečnega prereza prevodnega vodnika / za kable AWG: 2x (24 ... 16)
- Tip prečnega prereza vodnika, ki ga je mogoče povezati / poln / brez obdelave konca jedra: 2x (0,25 ... 1,5 mm²)
- Vrsta prečnih prerezov prevodnikov, ki jih je mogoče povezati / fino vlečeni / z obdelavo konca jedra: 2x (0,25 ... 0,75 mm²)
- Vrsta prerezov prevodnih vodnikov / fino vlečenih / brez obdelave konca jedra: 2x (0,25 ... 1,5 mm²)
- Največji vklopni tok: 2 A.
- Izolacijska napetost: 320 V
- Najmanjša svetilnost: 450 mcd
- Največja svetilnost: 1120 mcd
- Stopnja onesnaženosti: 3
- Vrsta izdelka
LED modul
- Značilnosti stikal/tipk
z LED elementom
- Priključek
vzmetna sponka
- Izvedba
z vgrajeno LED
- Barva svetlobe
rdeča
- Preklopna napetost
24 V DC/AC
- Preklopni tok maks.
25 mA
IP20
IP40
- Napetostna trdnost
4 kV
- Min. temperatura
-25 °C
- Maks. temperatura
+70 °C
- Širina
9.8 mm
- Višina
36 mm
- Električna življenjska doba
100.000
- Način montaže
prednja pritrditev
- Vsebina
5 kos

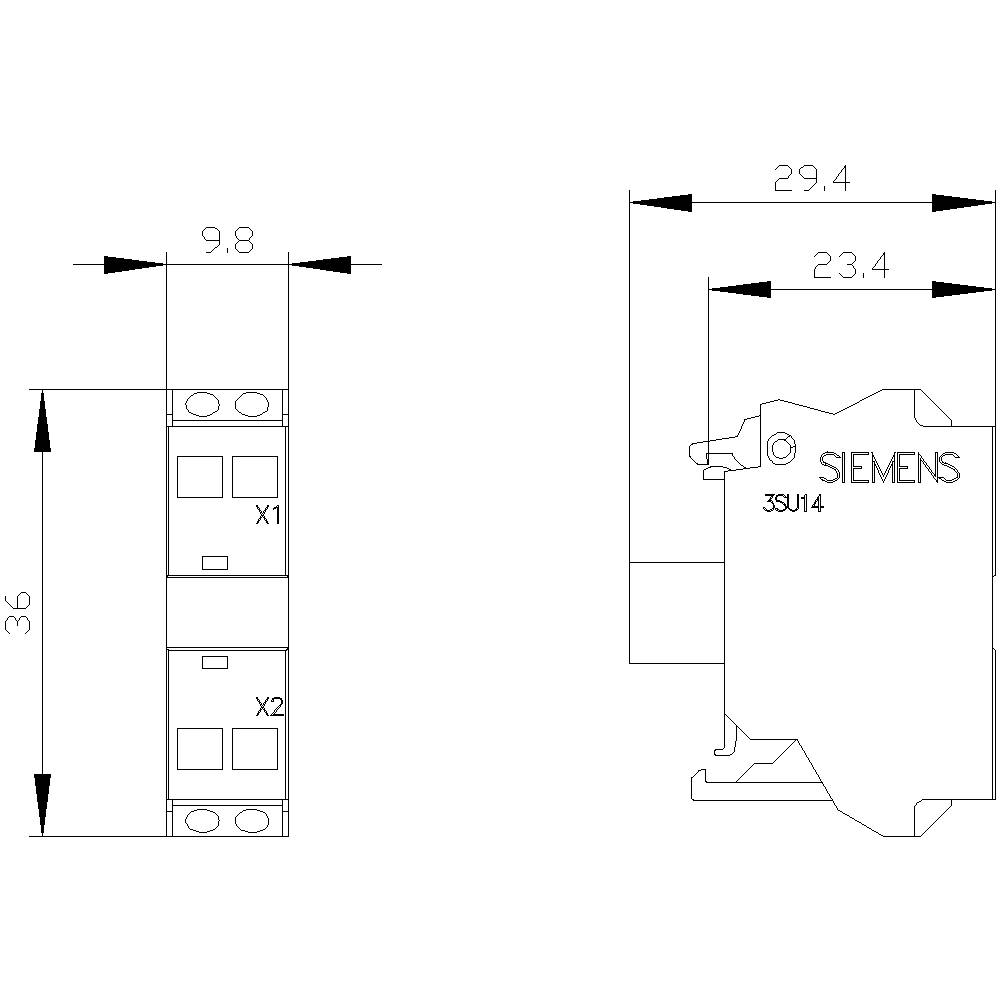

- Mere
(Š x V x G) 9.8 x 36 x 29.4 mm
- Skladnost z RoHS
Ja
- Globina
29.4 mm
- Vrsta
3SU1401-1BB20-3AA0
- Vključena svetila
da
None
FALSE
FALSE
TRUE
Red
LED
TRUE
Spring clamp connection
AC/DC
- UKCA
da
Dokumenti in prenosi
Tehnični podatki
Tehnični podatki 2262245 Siemens 3SU1401-1BB20-3AA0 LED modul z LED elementom rdeča 24 V DC/AC 5 kos
Navodila za uporabo in varnost
Navodila za uporabo in varnost 2262245 Siemens 3SU1401-1BB20-3AA0 LED modul z LED elementom rdeča 24 V DC/AC 5 kos
Opis
LED module with integrated LED 24 V AC/DC, red, Spring-loaded terminal, for front plate mounting, Minimum order quantity 5 or a multiple thereof LED module SIRIUS ACT for illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity thanks to energy efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

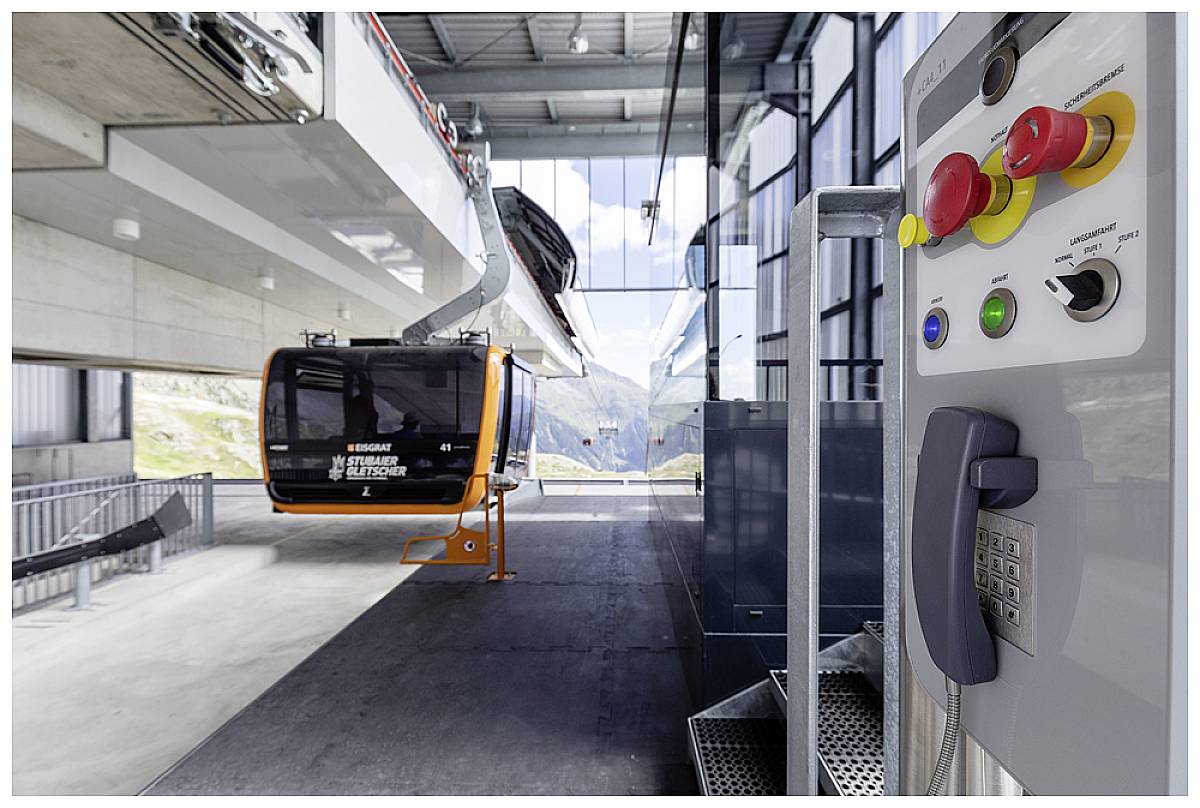

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
