1/4
Slika je simbolična
Polprevodniški rele 1 kos Siemens 3RF2030-1BA04 bremenski tok (maks.): 30 A takojšnje preklapljanje
Vrsta embalaže
Piece
Vrsta izdelka
polprevodniški rele
Krmilna napetost (min).
15 V/DC
Krmilna napetost (maks.)
24 V/DC
Preklopna napetost (maks.)
460 V/AC
Podatkovni list izdelka (PDF)
Ean:
Koda proizvajalca:
Št. izdelka:
Število
Skupaj (57,99 € / Kos)
57,99 €
z DDV
Vključena je 14-dnevna politika vračila
Poudarki in podrobnosti
Siemens polprevodniški rele 3RF2030-1BA04 Obremenilni tok (maks.): 30 A Preklopna napetost (maks.): 460 V/AC trenutno preklapljanje Piece 1 kos
- Širina gradnje 45 mm
- Besedilo je strojno prevedeno.
Tehnične specifikacije
- Vrsta embalaže
Piece
- Vrsta izdelka
polprevodniški rele
- Vrsta
3RF2030-1BA04
- Vrsta preklopa
trenutno preklapljanje
- Priključek
vijačna sponka
- Krmilna napetost (min).
15 V/DC
- Krmilna napetost (maks.)
24 V/DC
- Območje krmilne napetosti
15 - 24 V/DC
- Nadzor toka (maks.)
15 mA
- Prenapetostni tok (maks.)
300 A
- Preklopna napetost (min.)
48 V/AC
- Preklopna napetost (maks.)
460 V/AC
- Obremenilni tok (maks.)
30 A
- Izhodna napetost (min.)
48 V
- Izhodna napetost (maks.)
460 V/AC
- Izhodni tok maks.
30 A
- Kontakt
1 zapiralo
- Min. temperatura
-25 °C
- Maks. temperatura
+60 °C
IP20

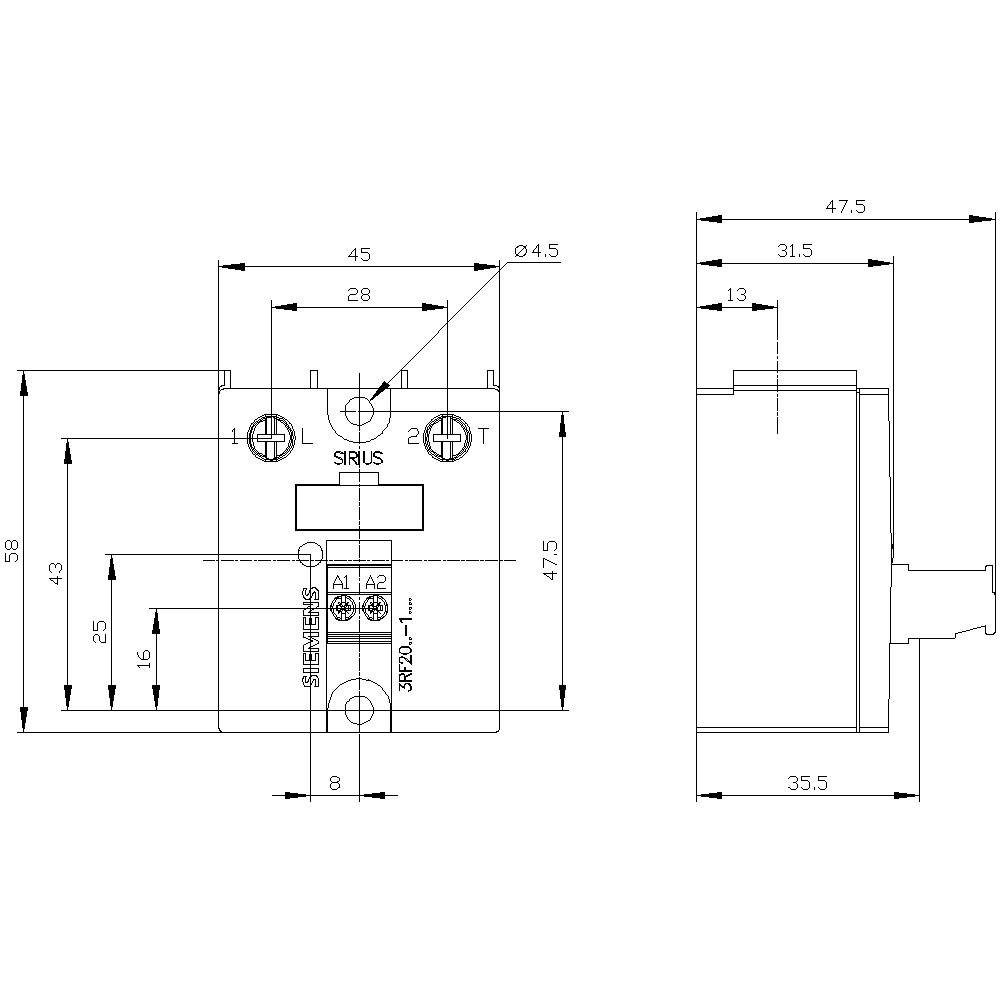

- Širina
45 mm
- Višina
58 mm
- Globina
48 mm
- Teža
85 g
- Skladnost z RoHS
Ja
- Stalni tok (maks.)
30 A
- Vsebina
1 kos
- Nazivna regulacijska napetost
24 V/DC
1
TRUE
30 A
DC
30 A
- UKCA
da
Dokumenti in prenosi
Tehnični podatki
Tehnični podatki 1430785 Polprevodniški rele 1 kos Siemens 3RF2030-1BA04 bremenski tok (maks.): 30 A takojšnje preklapljanje
Tehnični podatki 1430785 Polprevodniški rele 1 kos Siemens 3RF2030-1BA04 bremenski tok (maks.): 30 A takojšnje preklapljanje
Navodila za uporabo in varnost
Navodila za uporabo in varnost 1430785 Polprevodniški rele 1 kos Siemens 3RF2030-1BA04 bremenski tok (maks.): 30 A takojšnje preklapljanje
Opis
Semiconductor relay, 1-phase 3RF2 Overall width 45 mm, 30 A 48-460 V / 24 V DC screw terminal Instantaneous switching solid-state relay SIRIUS 3RF20 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Obseg dostave
- Polprevodniški rele 1 kos Siemens 3RF2030-1BA04 bremenski tok (maks.): 30 A takojšnje preklapljanje
Namigi
Upoštevajte, da je izdelek poseben naročilo in zato izključen iz donosa. Posebno naročilo, brez pravice do odstopa.
