Končno stikalo 240 V/AC 1.5 A bat, tipkalno Siemens SIRIUS 3SE5232-0KC05 IP67 1 kos
Ean:
Koda proizvajalca:
Št. izdelka:
Podatkovni list izdelka (PDF)
Število
Skupaj (39,99 € / Kos)
39,99 €
z DDV
Vključena je 14-dnevna politika vračila
Tehnične specifikacije
- Vrsta izdelka
končno stikalo
- Priključek
vijačni
- Aktivacija - vrsta
dročnik
- Preklopna napetost
240 V/AC
- Preklopni tok maks.
1.5 A
- Kontakt
1 zapiralo
2 odpiralo
- Odprtina kontakta
plazilni kontakt
- Funkcije
tipkalno
IP67
- Velikost navoja
M20
- Material
plastika
- Širina
31 mm
- Vrsta
3SE5232-0KC05
- Vsebina
1 kos

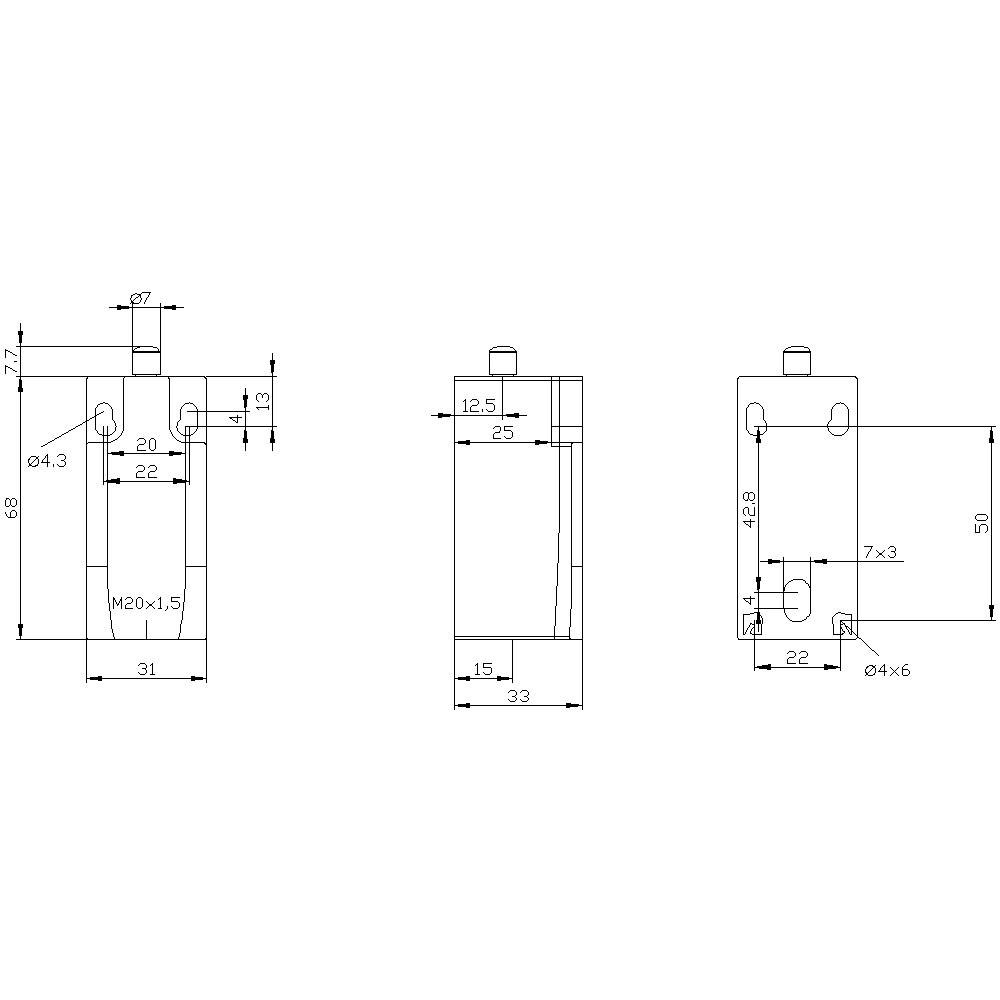

- Mere
(D x Š x V) 31 x 31 x 68 mm
- Skladnost z RoHS
Ja
- Višina
68 mm
- Dolžina
31 mm
- Globina
33 mm
- Izvedba
1 x delovni kontakt, 2 x mirovni kontakt
- Preklopni kontakt
plazilni kontakt
- Vrsta
3SE5232-0KC05
- Ohišje
ohišje iz umetne mase
Slow-action switch
Plastic
TRUE
Other
FALSE
None
None
None
Cuboid
IP65
TRUE
2
Plunger
None
FALSE
6 A
0.55 A
3 A
31 mm
33 mm
75.7 mm
FALSE
-25-85 °C
2
1
0
Roller cam straight
12
- UKCA
da
Dokumenti in prenosi
Tehnični podatki
Tehnični podatki 703032 Končno stikalo 240 V/AC 1.5 A bat, tipkalno Siemens SIRIUS 3SE5232-0KC05 IP67 1 kos
Navodila za uporabo in varnost
Navodila za uporabo in varnost 703032 Končno stikalo 240 V/AC 1.5 A bat, tipkalno Siemens SIRIUS 3SE5232-0KC05 IP67 1 kos
Opis
position switch plastic enclosure according to DIN EN 50047, 31 mm device connection 1 x (M20 x 1.5) 1 NO/2 NC slow-action contacts rounded plunger, form B Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.

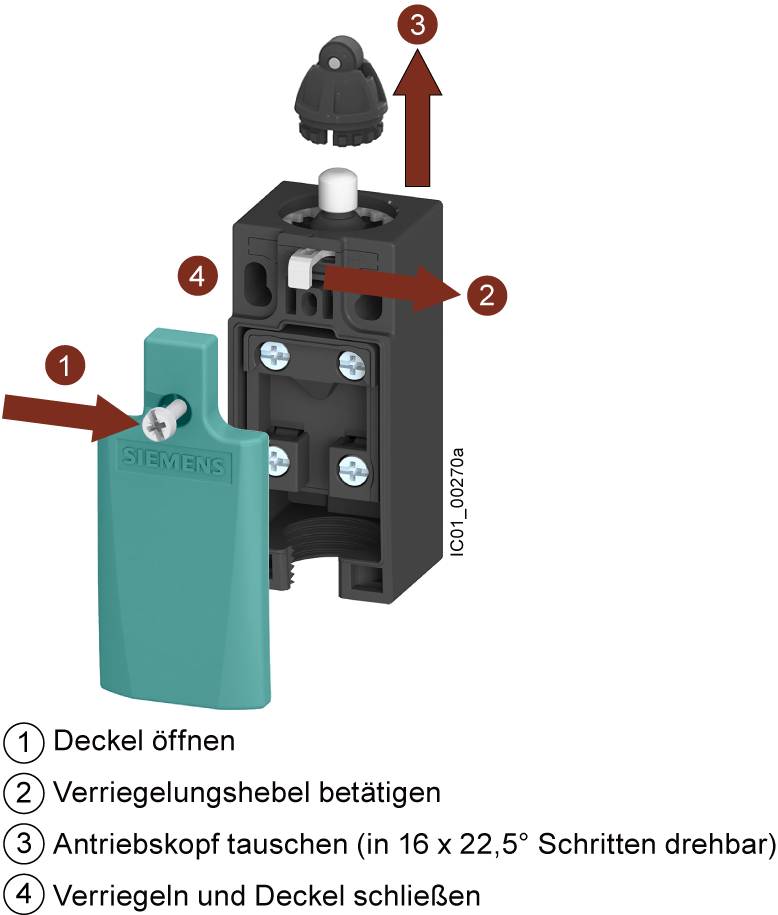

Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
Obseg dostave
- Končno stikalo 240 V/AC 1.5 A bat, tipkalno Siemens SIRIUS 3SE5232-0KC05 IP67 1 kos
