Mehki zaganjalnik Siemens 3RW3013 moč motorja pri 400 V 1.5 kW moč motorja pri 230 V 0.75 kW 400 V/AC nazivni tok 3.6 A
Ean:
Koda proizvajalca:
Št. izdelka:
Podatkovni list izdelka (PDF)
Število
Skupaj (239,99 € / Kos)
239,99 €
z DDV
Vključena je 14-dnevna politika vračila
Tehnične specifikacije
- Napetost motorja
400 V/AC
- Vrsta izdelka
mehki zaganjalnik
- Priključni tok
3.6 A
- Moč motorja pri 230 V
0.75 kW
- Moč motorja pri 400 V
1.5 kW
- Nazivna napetost
400 V/AC
- Delovne faze
2
- Proizv. št. delov
3RW30131BB14
- Nazivni tok
3.6 A
- Nazivni tok - zaokrožen
3.6 A
- Vrsta
3RW3013-1BB14
- Moč motorja pri 230 V/ 400 V
1.5 kW

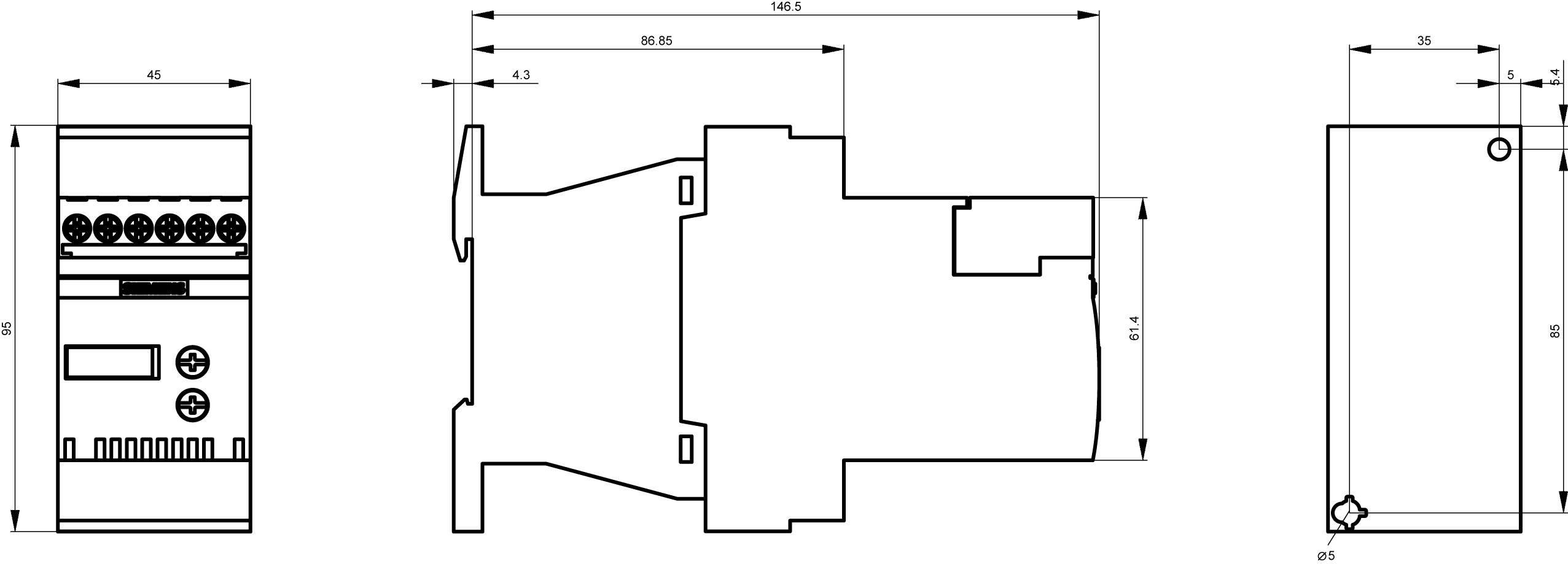

- Mere
(D x Š x V) 150 x 45 x 100 mm
- Priključek
vijačna sponka
- Širina
45 mm
- Višina
100 mm
- Dolžina
150 mm
- Globina
150 mm
- Maks. temperatura
40 °C
Single direction
110-230 V
110-230 V
110-230 V
IP20
Other
3.6 A
0.75 kW
1.5 kW
40 °C
FALSE
AC/DC
- UKCA
da
Dokumenti in prenosi
Tehnični podatki
Tehnični podatki 197535 Mehki zaganjalnik Siemens 3RW3013 moč motorja pri 400 V 1.5 kW moč motorja pri 230 V 0.75 kW 400 V/AC nazivni tok 3.6 A
Navodila za uporabo in varnost
Navodila za uporabo in varnost 197535 Mehki zaganjalnik Siemens 3RW3013 moč motorja pri 400 V 1.5 kW moč motorja pri 230 V 0.75 kW 400 V/AC nazivni tok 3.6 A
Opis
SIRIUS soft starter S00 3.6 A, 1.5 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

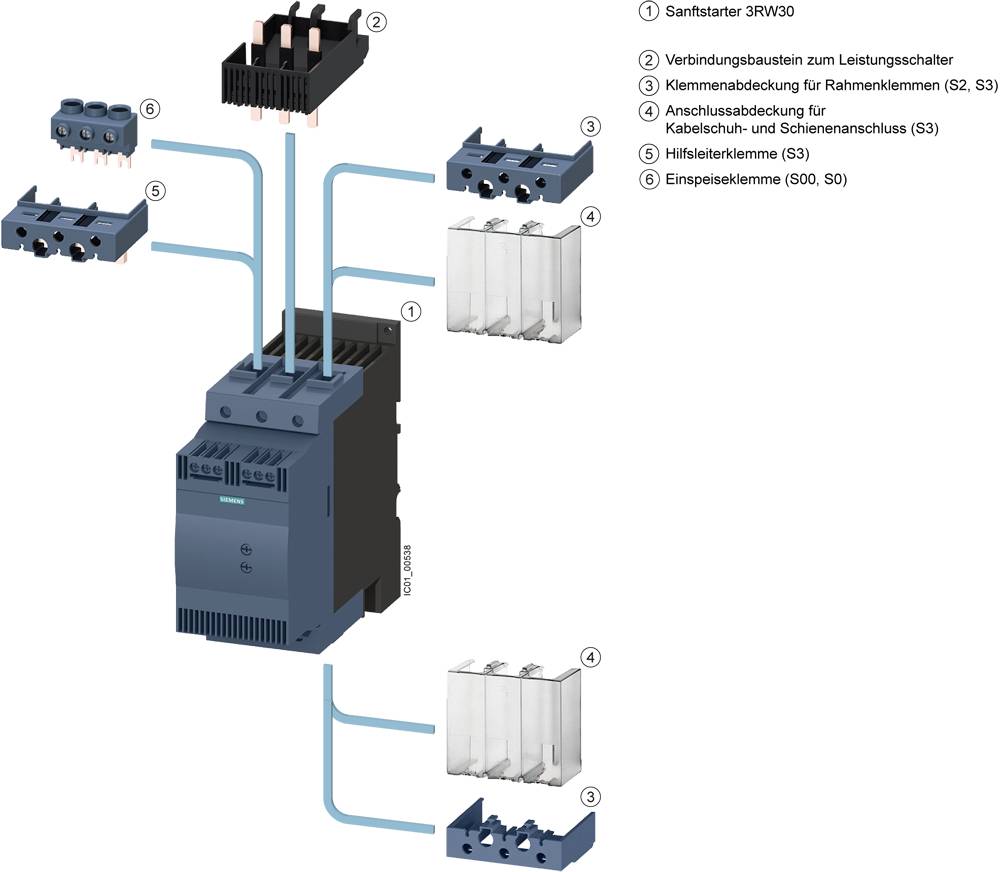

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Obseg dostave
- Mehki zaganjalnik Siemens 3RW3013 moč motorja pri 400 V 1.5 kW moč motorja pri 230 V 0.75 kW 400 V/AC nazivni tok 3.6 A
