Slika je simbolična
1/6
Slika je simbolična
Močnostno stikalo 1 kos Siemens 3RV2011-0KA10 3 zapiralni, nastavitev (tok): 0.9 - 1.25 A preklopna napetost (maks.): 69
Ean:
Koda proizvajalca:
Št. izdelka:
Vrsta izdelka
močnostno stikalo
Nastavitveno območje toka (maks.)
1.25 A
Kontakt
3 zapiralo
Priključek
vijačni
Vrsta embalaže
Single
Podatkovni list izdelka (PDF)
Število
Skupaj (79,99 € / Kos)
79,99 €
z DDV
Vključena je 14-dnevna politika vračila
Tehnične specifikacije
- Izvedba: za zaščito motorja
- Izvedba niti: M3
- Teža 342 g
- Mehanska življenjska doba: 100000
- Električna življenjska doba: 100000
- Izolacijska napetost: 690 V
- Izguba moči: 6 W
- Frekvenca: 50/60 Hz
- Vrsta embalaže
Single
- Vrsta izdelka
močnostno stikalo
- Vrsta
3RV2011-0KA10
- Velikost
S00
- Nastavitveno območje toka (min.)
0.9 A
- Nastavitveno območje toka (maks.)
1.25 A
- Nastavitveno območje (tok)
0.9 - 1.25 A
- Kontakt
3 zapiralo
- Število polov
3-polni
- Preklopna napetost (maks.)
690 V/AC
- Namestitev
din-letev
- Min. temperatura
-20 °C
- Maks. temperatura
+60 °C
- Značilnosti
s pomožnim kontaktom
- Priključek
vijačni
IP20

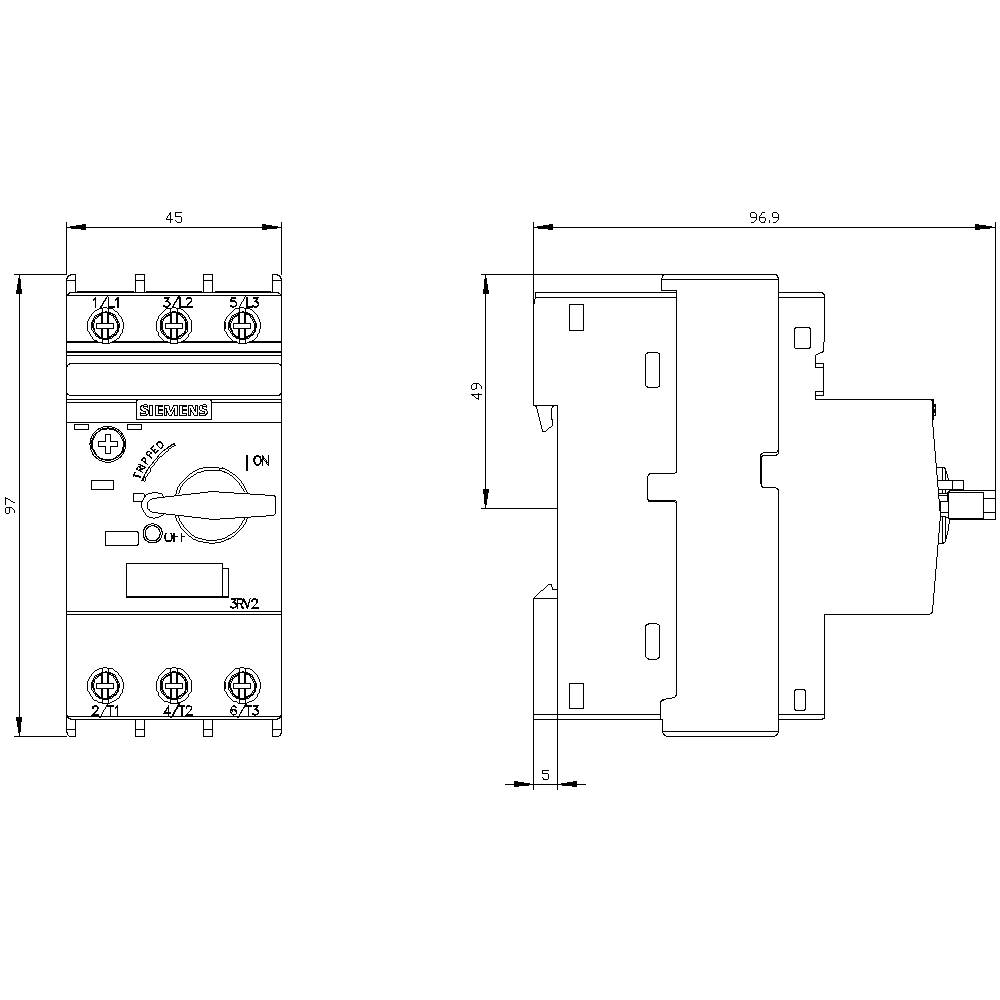

- Globina
97 mm
- Širina
45 mm
- Višina
97 mm
- Mere
(D x Š x V) 150 cm x 45 mm x 97 mm
- Vsebina
1 kos
- Skladnost z RoHS
Ja
- Barva
večbarvna
- Dolžina
150 cm
45
97 mm
97 mm
0.37 kW
FALSE
1.25 A
FALSE
3
690-690 V
0.9-1.25 A
IP20
TRUE
Screw connection
Turn button
Magnetic
0.2 kW
100 kA
TRUE
Built-in device fixed built-in technique
- UKCA
da
Dokumenti in prenosi
Tehnični podatki
Tehnični podatki 1431131 Močnostno stikalo 1 kos Siemens 3RV2011-0KA10 3 zapiralni, nastavitev (tok): 0.9 - 1.25 A preklopna napetost (maks.): 69
Tehnični podatki 1431131 Močnostno stikalo 1 kos Siemens 3RV2011-0KA10 3 zapiralni, nastavitev (tok): 0.9 - 1.25 A preklopna napetost (maks.): 69
Navodila za uporabo in varnost
Navodila za uporabo in varnost 1431131 Močnostno stikalo 1 kos Siemens 3RV2011-0KA10 3 zapiralni, nastavitev (tok): 0.9 - 1.25 A preklopna napetost (maks.): 69
Opis
Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.9...1.25 A N-release 16 A screw terminal Standard switching capacity Circuit breaker SIRIUS 3RV2 For motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for safe isolation of the system from the network.
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.

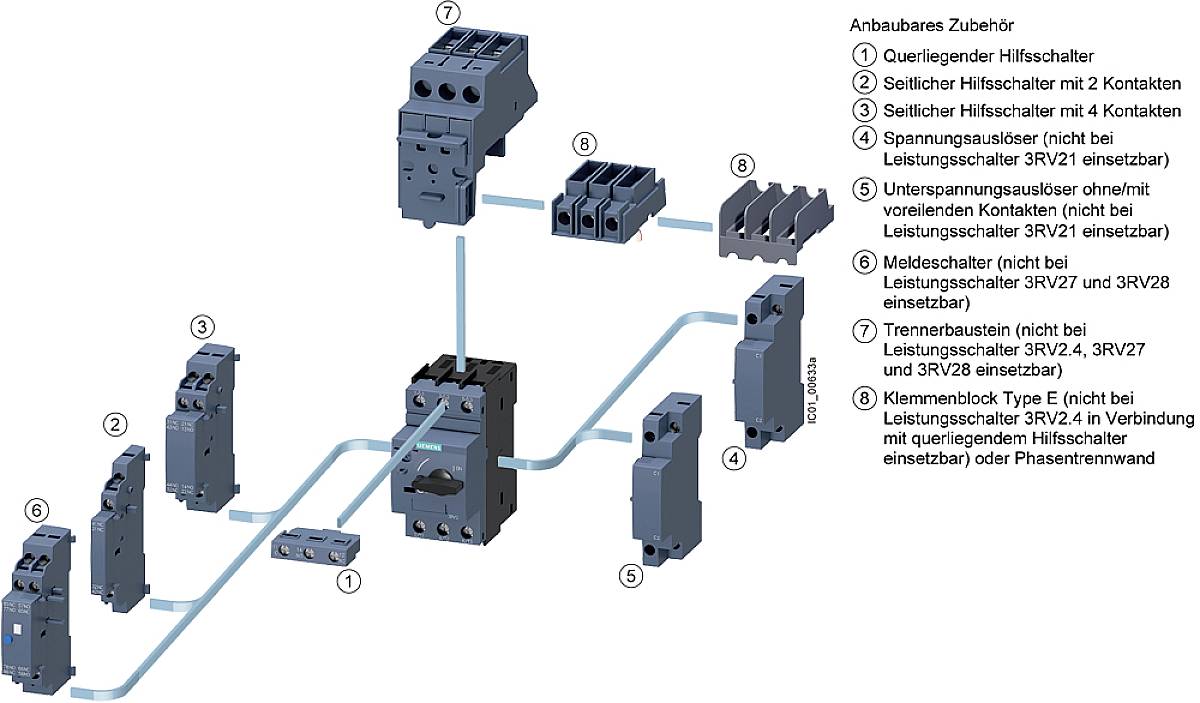

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
Obseg dostave
- Močnostno stikalo 1 kos Siemens 3RV2011-0KA10 3 zapiralni, nastavitev (tok): 0.9 - 1.25 A preklopna napetost (maks.): 690 V/AC (Š x V x G) 45 x 97 x 96 mm
